Four point contact ball slewing bearing



  • Product description
    • Commodity name: Four point contact ball slewing bearing
    • Commodity ID: 1322628716517019648

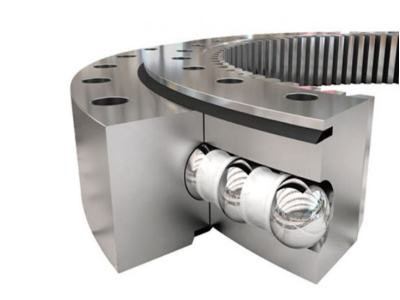

    Four point contact ball slewing bearing is made up of two seat rings. In this slewing bearing, the balls contact with the circular raceway at four points. The bearing can support axial force, radial force and resultant moment simultaneously.

         Four point contact ball slewing bearing is made up of two seat rings. In this slewing bearing, the balls contact with the circular raceway at four points. The bearing can support axial force, radial force and resultant moment simultaneously.

        Four point contact ball slewing bearings are compact in design and light in weight. They can be applied in slewing conveyors, welding manipulators, middle or small sized cranes and excavators, etc.

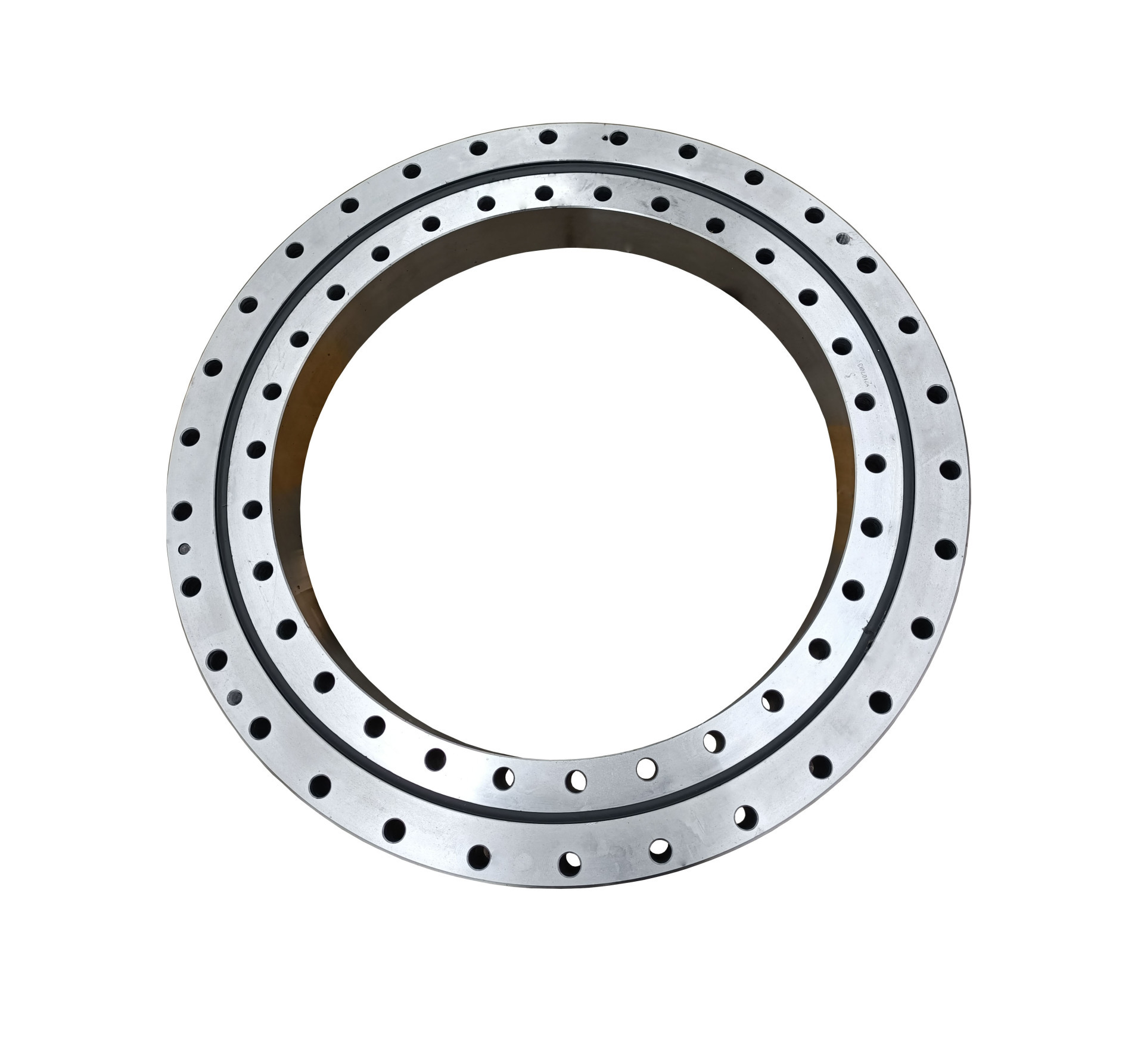

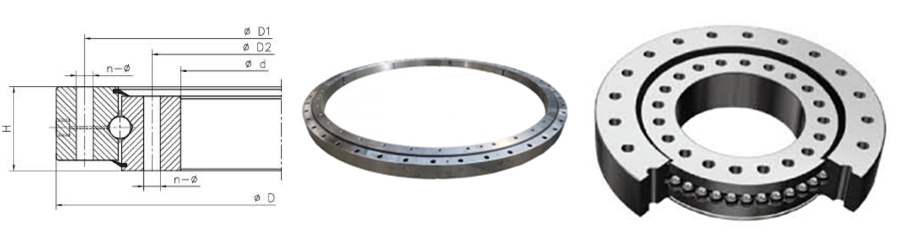

    Four-point Contact Ball, with No Gear

    Four-point Contact Ball, with No Gear

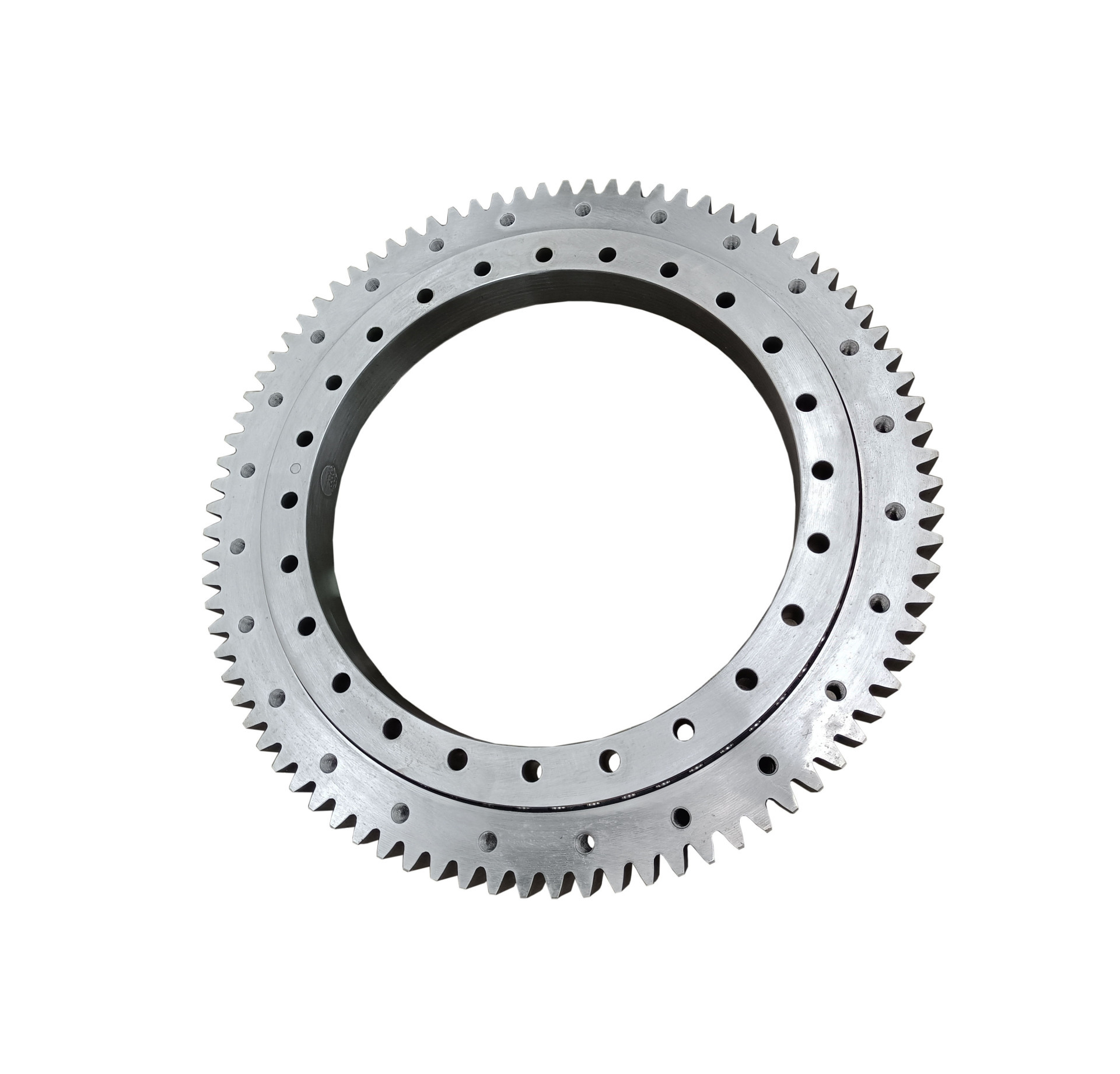

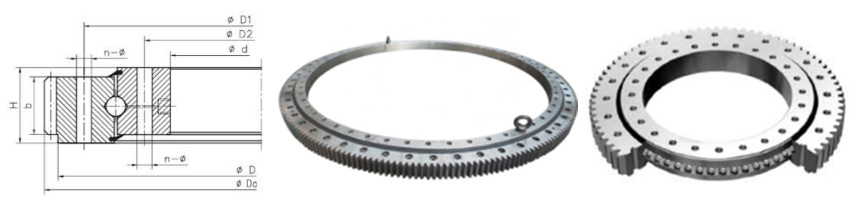

    Four-point Contact Ball, with External Gear

    Four-point Contact Ball, with External Gear

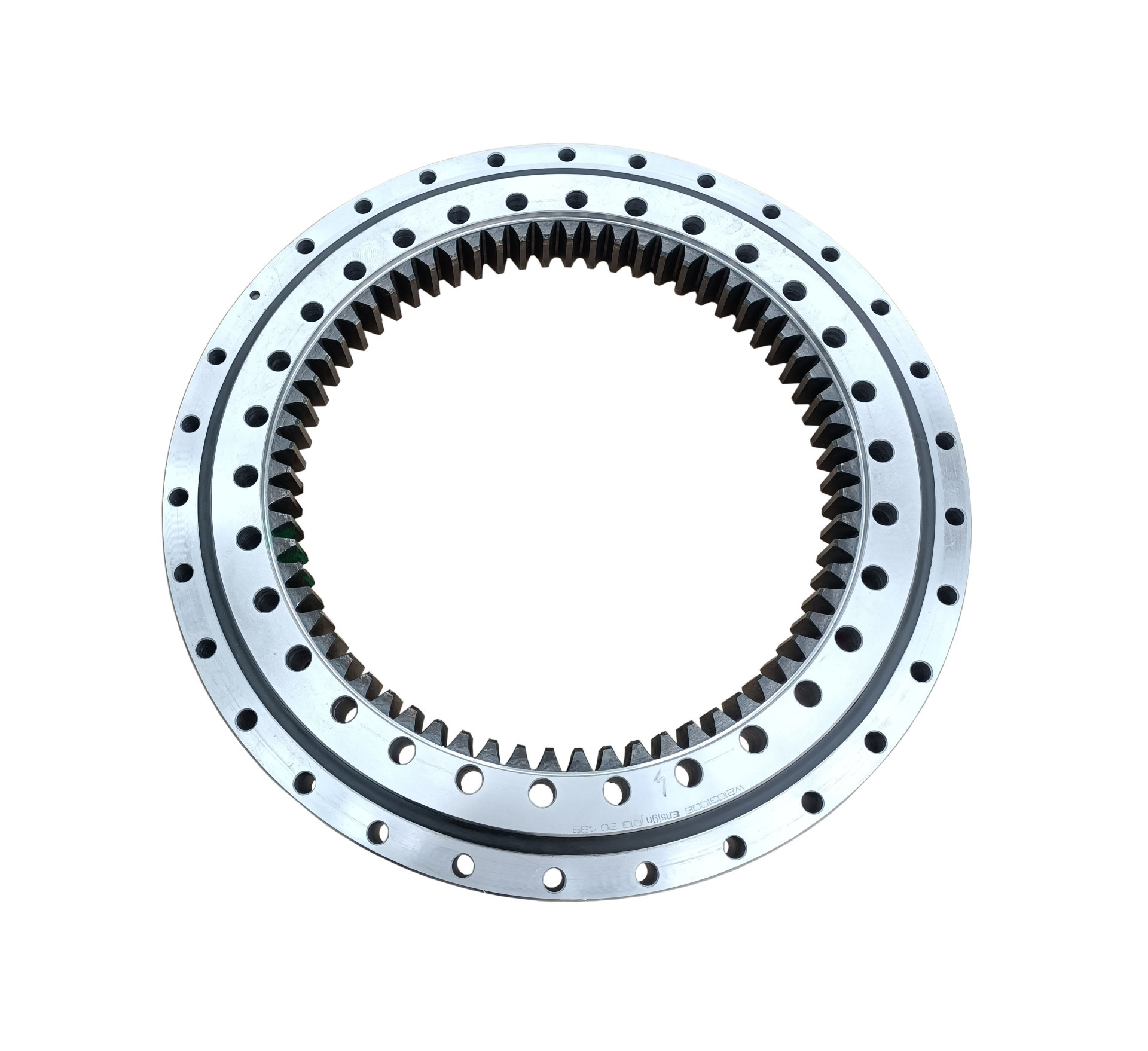

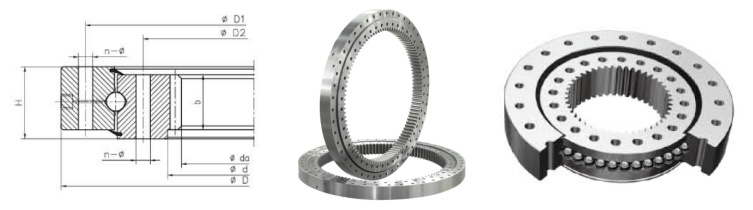

    Four-point Contact Ball, with Internal Gear

    Four-point Contact Ball, with Internal Gear

    Key words:
    • slew ring
    • slewing bearing
    • slew bearing
