Crossed Roller Slewing Bearing

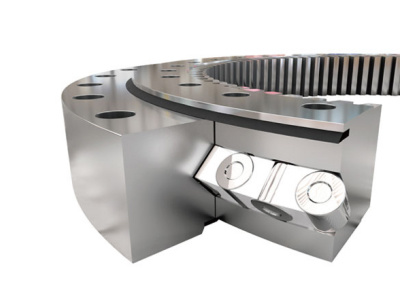

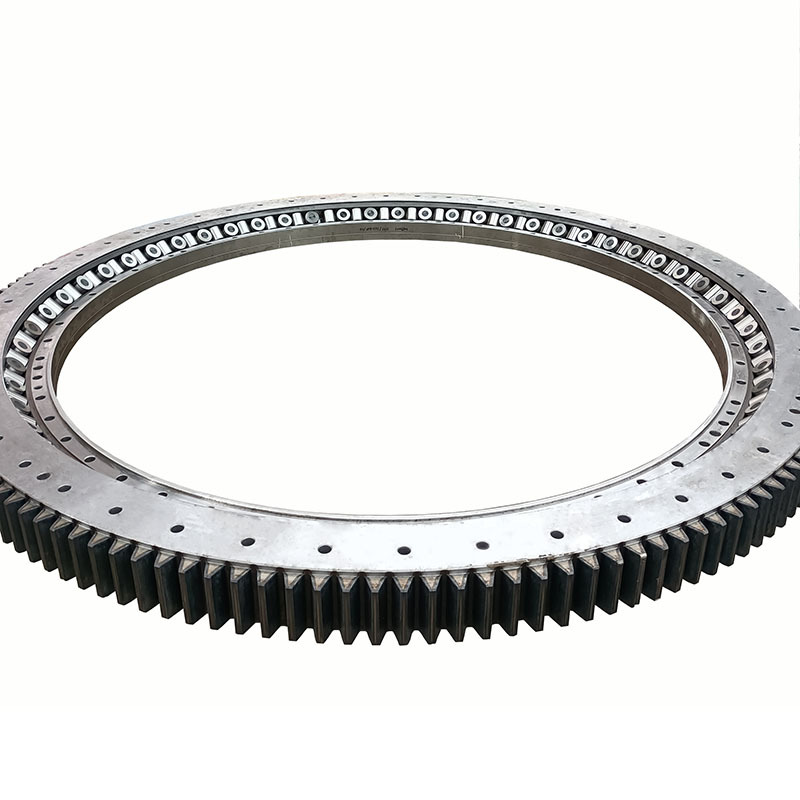

Single-row crossed roller bearing incorporates two rings and is designed with compact construction, light weight, high precision, and small assembling clearance. The rollers are crossed one by one, enabling the slewing bearing to accommodate high axial, radial and tilting moment loads. Single-row crossed roller bearing is suitable for hoisting equipment and other engineering machinery.
Product Category:
- Product description
-
- Commodity name: Crossed Roller Slewing Bearing
- Commodity ID: 1322628723324375040
Single-row crossed roller bearing incorporates two rings and is designed with compact construction, light weight, high precision, and small assembling clearance. The rollers are crossed one by one, enabling the slewing bearing to accommodate high axial, radial and tilting moment loads. Single-row crossed roller bearing is suitable for hoisting equipment and other engineering machinery.
Single-row crossed roller bearing incorporates two rings and is designed with compact construction, light weight, high precision, and small assembling clearance. The rollers are crossed one by one, enabling the slewing bearing to accommodate high axial, radial and tilting moment loads. Single-row crossed roller bearing is suitable for hoisting equipment and other engineering machinery.
- Outer diameter: 602mm~4726mm
- Ball diameter: 25mm~50mm
- Rated load: 104kN~1980kN

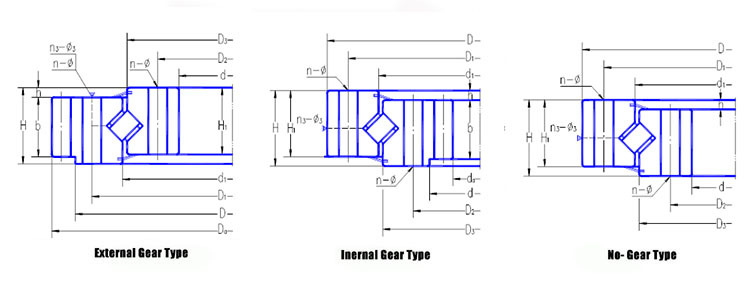

Designations Boundary dimensions Bolt hole diameter Structure dimensions Gear parameters Basic load ratings Mass 无齿式 外齿式 内齿式 D d H D1 D2 n φ D3 d1 H1 h n3 φ3 m Da Z da Z b x Coa Non-gear External gear Internal gear mm mm mm mm mm mm mm mm 104 N kg 110·25·500·** 111·25·500·** 113·25·500·** 602 398 75 566 434 20 18 499 501 65 10 4 M10×1 5 630 123 365 74 60 0.5 104 80 112·25·500·** 114·25·500·** 602 398 75 566 434 20 18 499 501 65 10 4 M10×1 6 630 120 366 62 60 0.5 104 80 110·25·560·** 111·25·560·** 113·25·560·** 662 458 75 626 494 20 18 558.5 561.5 65 10 4 M10×1 5 690 135 425 86 60 0.5 116 90 112·25·560·** 114·25·560·** 662 458 75 626 494 20 18 558.5 561.5 65 10 4 M10×1 6 690 112 426 72 60 0.5 116 90 110·25·630·** 111·25·630·** 113·25·630·** 732 528 75 696 564 24 18 628.5 631.5 65 10 4 M10×1 6 774 126 492 83 60 0.5 130 100 112·25·630·** 114·25·630·** 732 528 75 696 564 24 18 628.5 631.5 65 10 4 M10×1 8 776 94 488 62 60 0.5 130 100 110·25·710·** 111·25·710·** 113·25·710·** 812 608 75 776 644 24 18 708.5 711.5 65 10 4 M10×1 6 852 139 570 96 60 0.5 149 110 112·25·710·** 114·25·710·** 812 608 75 776 644 24 18 708.5 711.5 65 10 4 M10×1 8 856 104 568 72 60 0.5 149 110 110·28·800·** 111·28·800·** 113·28·800·** 922 678 82 878 722 30 22 798.5 801.5 72 10 6 M10×1 8 968 118 632 80 65 0.5 185 170 112·28·800·** 114·28·800·** 922 678 82 878 722 30 22 798.5 801.5 72 10 6 M10×1 10 970 94 630 64 65 0.5 185 170 110·28·900·** 111·28·900·** 113·28·900·** 1022 778 82 978 822 30 22 898.5 901.5 72 10 6 M10×1 8 1064 130 736 93 65 0.5 209 190 112·28·900·** 114·28·900·** 1022 778 82 978 822 30 22 898.5 901.5 72 10 6 M10×1 10 1070 104 730 74 65 0.5 209 190 110·28·1000·** 111·28·1000·** 113·28·1000·** 1122 878 82 1078 922 36 22 998.5 1001.5 72 10 6 M10×1 10 1190 116 820 83 65 0.5 233 210 112·28·1000·** 114·28·1000·** 1122 878 82 1078 922 36 22 998.5 1001.5 72 10 6 M10×1 12 1188 96 816 69 65 0.5 233 210 110·28·1120·** 111·28·1120·** 113·28·1120·** 1242 998 82 1198 1042 36 22 1118 1122 72 10 6 M10×1 10 1300 127 940 95 65 0.5 262 230 112·28·1120·** 114·28·1120·** 1242 998 82 1198 1042 36 22 1118 1122 72 10 6 M10×1 12 1308 106 936 79 65 0.5 262 230 110·32·1250·** 111·32·1250·** 113·32·1250·** 1390 1110 91 1337 1163 40 26 1248 1252 81 10 6 M10×1 12 1452 118 1044 88 75 0.5 321 350 112·32·1250·** 114·32·1250·** 1390 1110 91 1337 1163 40 26 1248 1252 81 10 6 M10×1 14 1456 101 1036 75 75 0.5 321 350 110·32·1400·** 111·32·1400·** 113·32·1400·** 1540 1260 91 1487 1313 40 26 1398 1402 81 10 6 M10×1 12 1608 131 1188 100 75 0.5 358 400 112·32·1400·** 114·32·1400·** 1540 1260 91 1487 1313 40 26 1398 1402 81 10 6 M10×1 14 1610 112 1190 86 75 0.5 358 400 110·32·1600·** 111·32·1600·** 113·32·1600·** 1740 1460 91 1687 1513 45 26 1598 1602 81 10 8 M10×1 14 1820 127 1386 100 75 0.5 412 440 112·32·1600·** 114·32·1600·** 1740 1460 91 1687 1513 45 26 1598 1602 81 10 8 M10×1 16 1824 111 1376 87 75 0.5 412 440 110·32·1800·** 111·32·1800·** 113·32·1800·** 1940 1660 91 1887 1713 45 33 1798 1802 81 10 8 M10×1 14 2016 141 1568 113 75 0.5 460 500 112·32·1800·** 114·32·1800·** 1940 1660 91 1887 1713 45 33 1798 1802 81 10 8 M10×1 16 2016 123 1568 99 75 0.5 460 500 110·40·2000·** 111·40·2000·** 113·40·2000·** 2178 1825 112 2110 1891 48 33 1998 2002 100 12 8 M10×1 16 2272 139 1728 109 90 0.5 686 900 112·40·2000·** 114·40·2000·** 2178 1825 112 2110 1891 48 33 1998 2002 100 12 8 M10×1 18 2268 123 1728 97 90 0.5 686 900 110·40·2240·** 111·40·2240·** 113·40·2240·** 2418 2065 112 2350 2131 48 33 2237.5 2242.5 100 12 8 M10×1 16 2496 153 1984 125 90 0.5 764 1000 112·40·2240·** 114·40·2240·** 2418 2065 112 2350 2131 48 33 2237.5 2242.5 100 12 8 M10×1 18 2502 136 1980 111 90 0.5 764 1000 110·40·2500·** 111·40·2500·** 113·40·2500·** 2678 2325 112 2610 2391 56 33 2497.5 2502.5 100 12 8 M10×1 18 2772 151 2232 125 90 0.5 797 876 112·40·2500·** 114·40·2500·** 2678 2325 112 2610 2391 56 33 2497.5 2502.5 100 12 8 M10×1 20 2780 136 2220 112 90 0.5 797 876 110·40·2800·** 111·40·2800·** 113·40·2800·** 2978 2625 112 2910 2691 56 33 2797.5 2802.5 100 12 8 M10×1 18 3078 168 2520 141 90 0.5 960 1250 112·40·2800·** 114·40·2800·** 2978 2625 112 2910 2691 56 33 2797.5 2802.5 100 12 8 M10×1 20 3080 151 2520 127 90 0.5 960 1250 110·50·3150·** 111·50·3150·** 113·50·3150·** 3376 2922 134 3286 3014 56 45 3147.5 3152.5 122 12 8 M10×1 20 3480 171 2820 142 110 0.5 1380 2150 112·50·3150·** 114·50·3150·** 3376 2922 134 3286 3014 56 45 3147.5 3152.5 122 12 8 M10×1 22 3476 155 2816 129 110 0.5 1380 2150 110·50·3550·** 111·50·3550·** 113·50·3550·** 3776 3322 134 3686 3414 56 45 3547.5 3552.5 122 12 8 M10×1 20 3880 191 3220 162 110 0.5 1570 2470 112·50·3550·** 114·50·3550·** 3776 3322 134 3686 3414 56 45 3547.5 3552.5 122 12 8 M10×1 22 3894 174 3212 147 110 0.5 1570 2470 110·50·4000·** 111·50·4000·** 113·50·4000·** 4226 3772 134 4136 3864 60 45 3997.5 4002.5 122 12 10 M10×1 22 4334 194 3652 167 110 0.5 1760 2800 112·50·4000·** 114·50·4000·** 4226 3772 134 4136 3864 60 45 3997.5 4002.5 122 12 10 M10×1 25 4350 171 3650 147 110 0.5 1760 2800 110·50·4500·** 111·50·4500·** 113·50·4500·** 4726 4272 134 4636 4364 60 45 4497.5 4502.5 122 12 10 M10×1 22 4940 217 4158 190 110 0.5 1980 3100 112·50·4500·** 114·50·4500·** 4726 4272 134 4636 4364 60 45 4497.5 4502.5 122 12 10 M10×1 25 4850 191 4150 167 110 0.5 1980 3100 Key words:- Crossed roller bearing
- roller bearings
- bearings for cranes
- ingle-row crossed roller bearing manufacturing
