Equal-section thin-walled bearings are world-renowned for their space saving and weight reduction. It solves the problems of size weight of traditional bearings, and the size and weight of shafts and housings. High precision, very quiet and strong load carrying capacity. Even with larger shaft diameters and bearing holes, the cross section remains the same. Therefore this type of thin-walled bearing is called constant section.
The bearing bore size is from 1.000 inches to 40.000 inches; the cross-section size series is from 0.187x0.187 inches to 1.000x1.000 inches.The material is available in high carbon Luo bearing steel(Gcr15) and stainless steel(440C, 304).
In addition, products with different internal clearances, lubrication, cages and other characteristics can be processed according to demand.

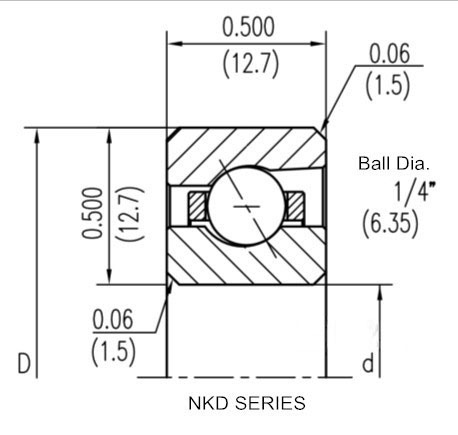

Equal-section thin-walled bearing structure is divided into three types: CPO (deep groove ball), XPO (four-point contact ball) ARO(angular contact ball).
